The 46150M+ is the ideal choice for operators running a 150 Ton press who demand versatility across diverse applications. This comprehensive system arrives fully equipped with all necessary tooling for UniCage platen head operation, eliminating the need for additional purchases. The integrated rack system keeps your complete tool collection organized and permanently mounted to the press, eliminating time wasted locating equipment or transferring tools between vehicles. The built-in lifting crane significantly reduces physical strain on your team by automating the loading of heavy tires into the unit, boosting both safety and operational efficiency on the job site.
INCLUDED UPGRADES Unicage Assembly Unicage Tool Kit Tool Tray with Storage Racks Lifting Crane

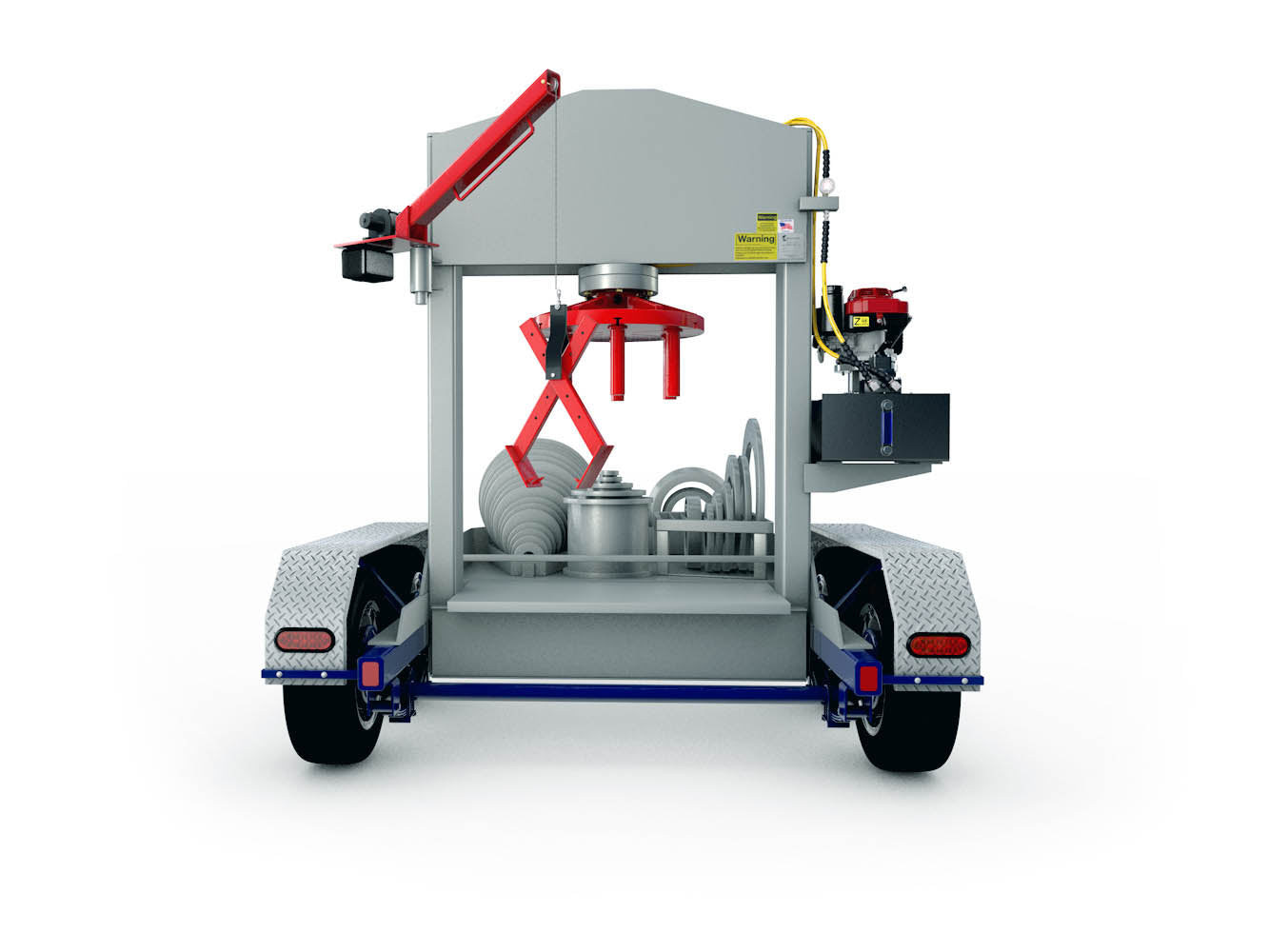

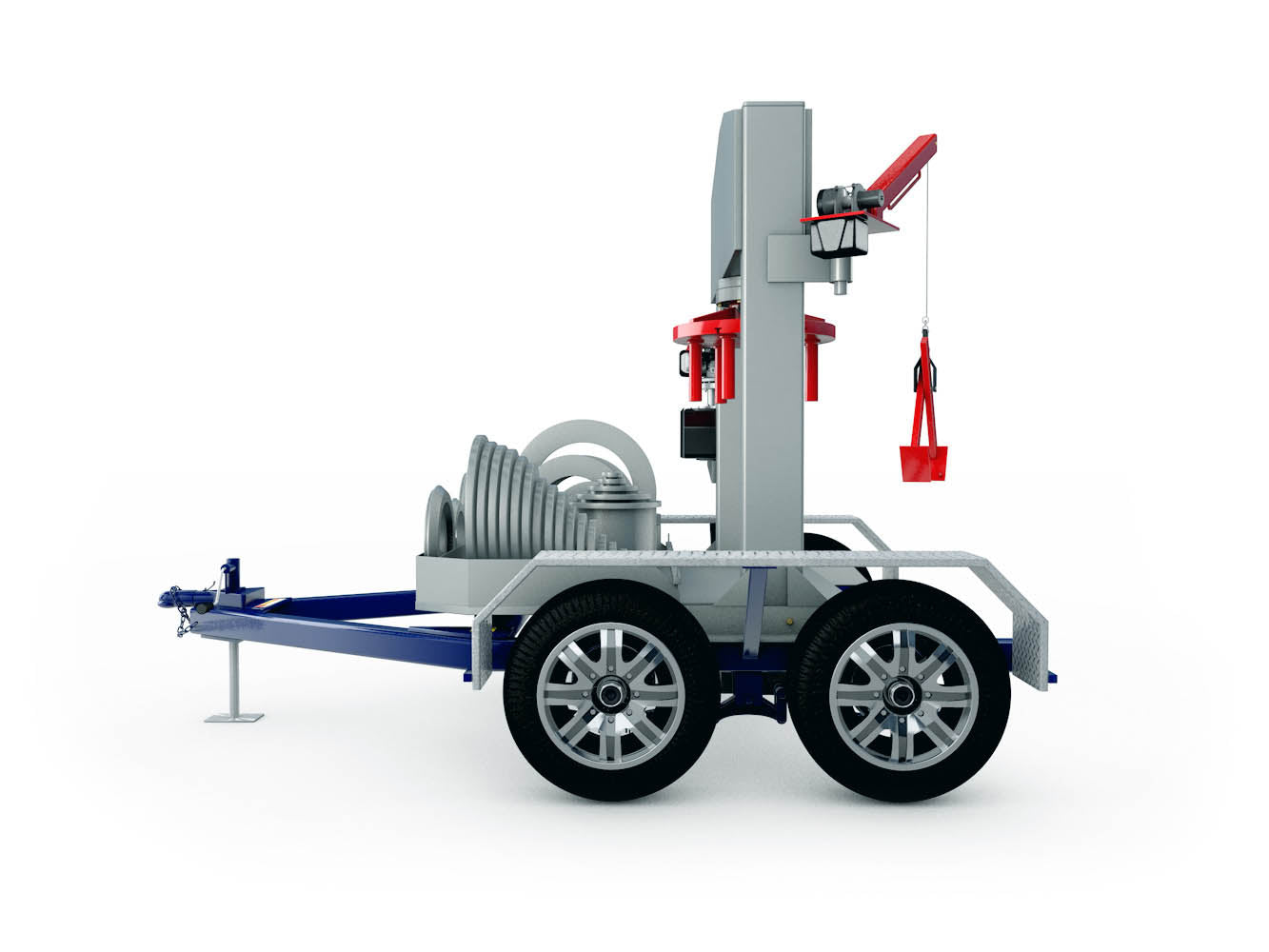

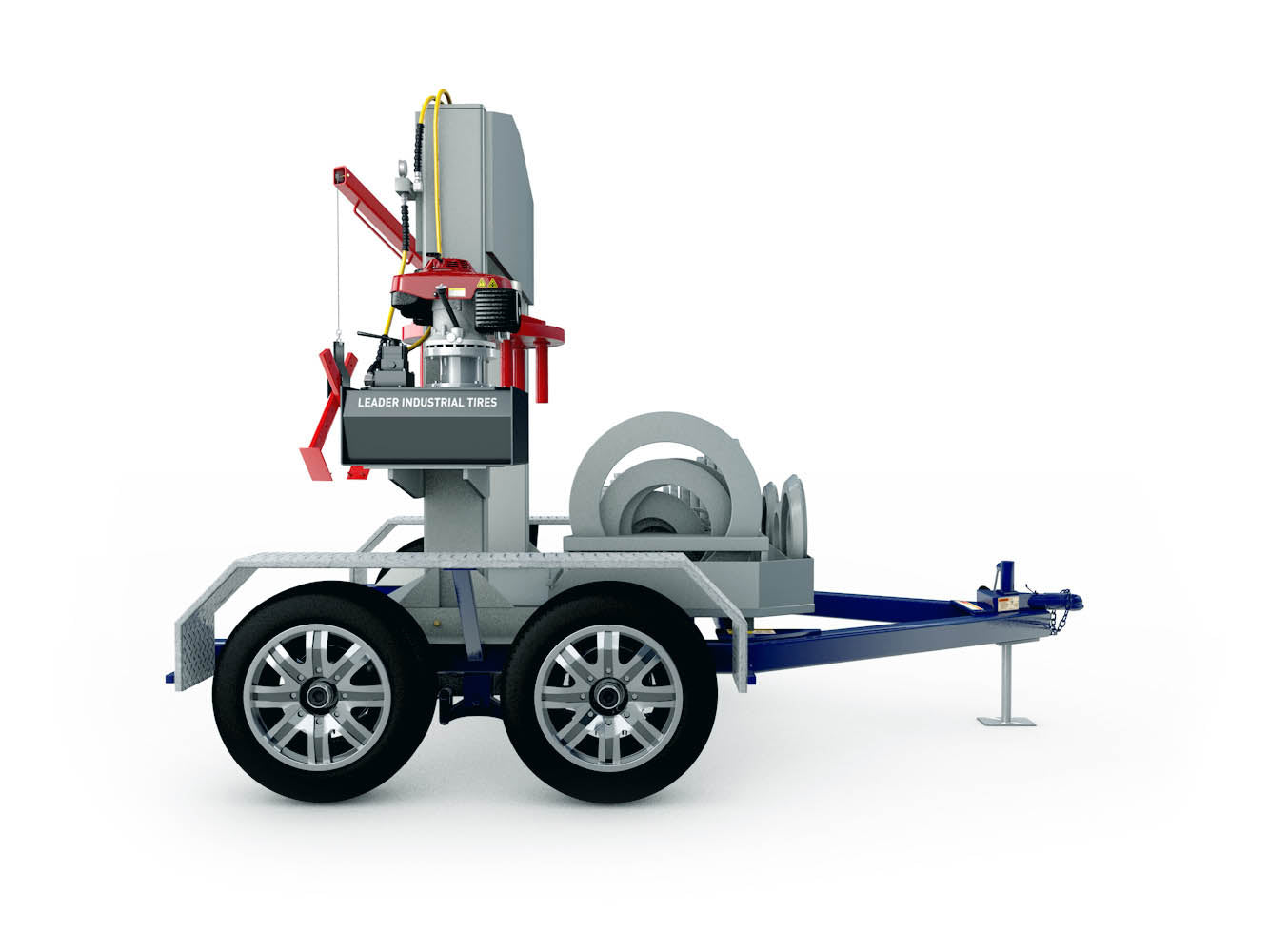

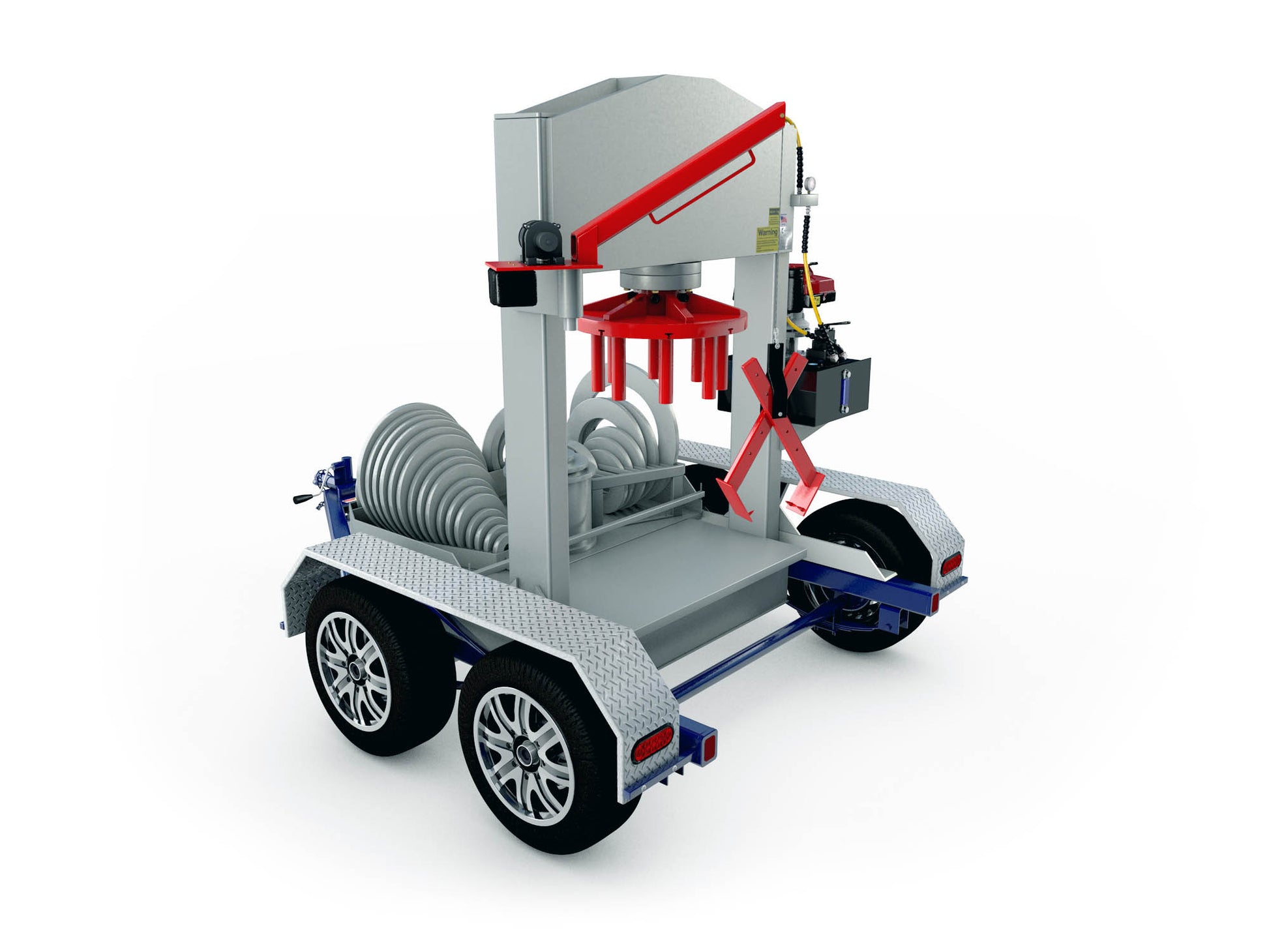

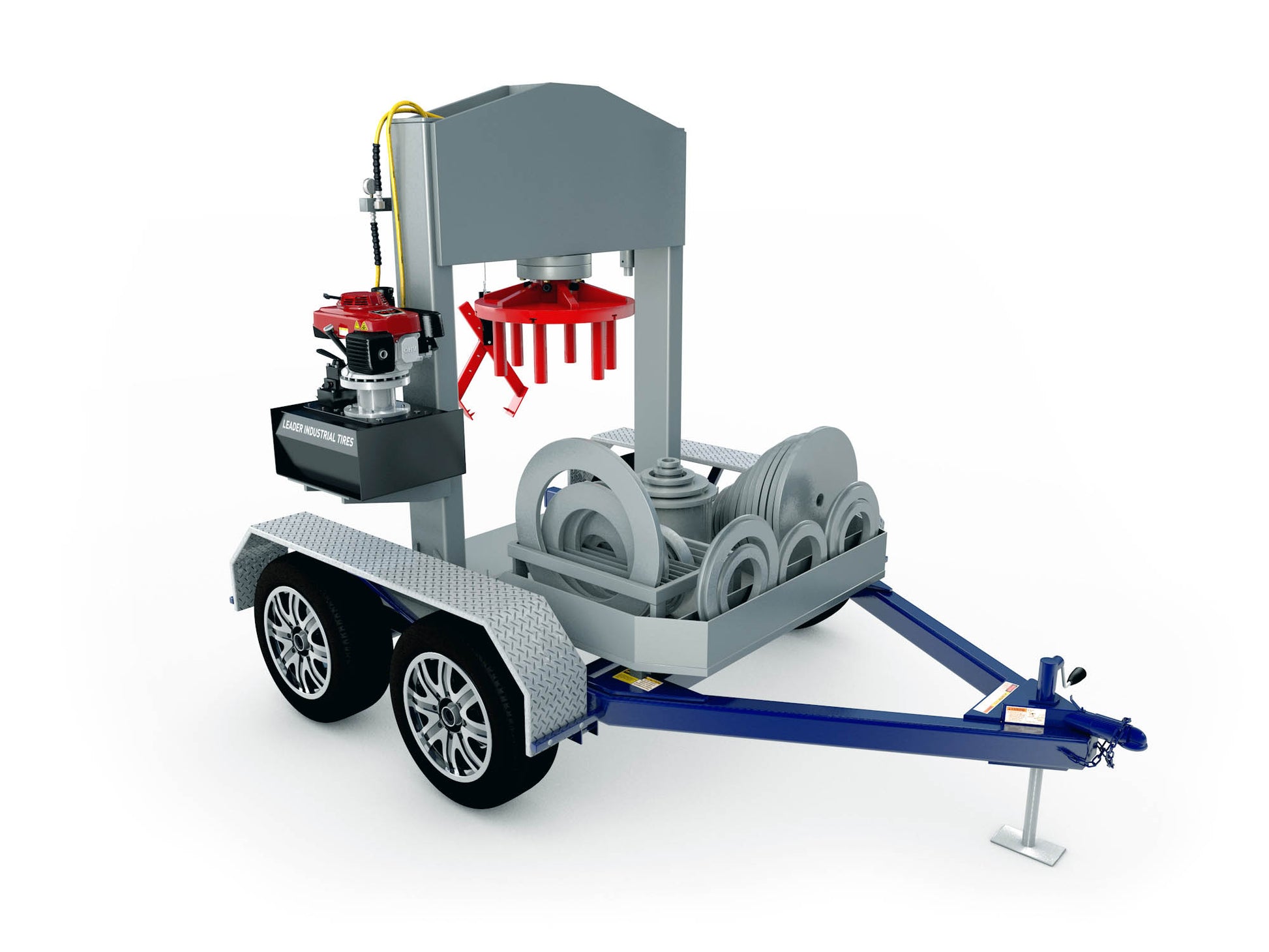

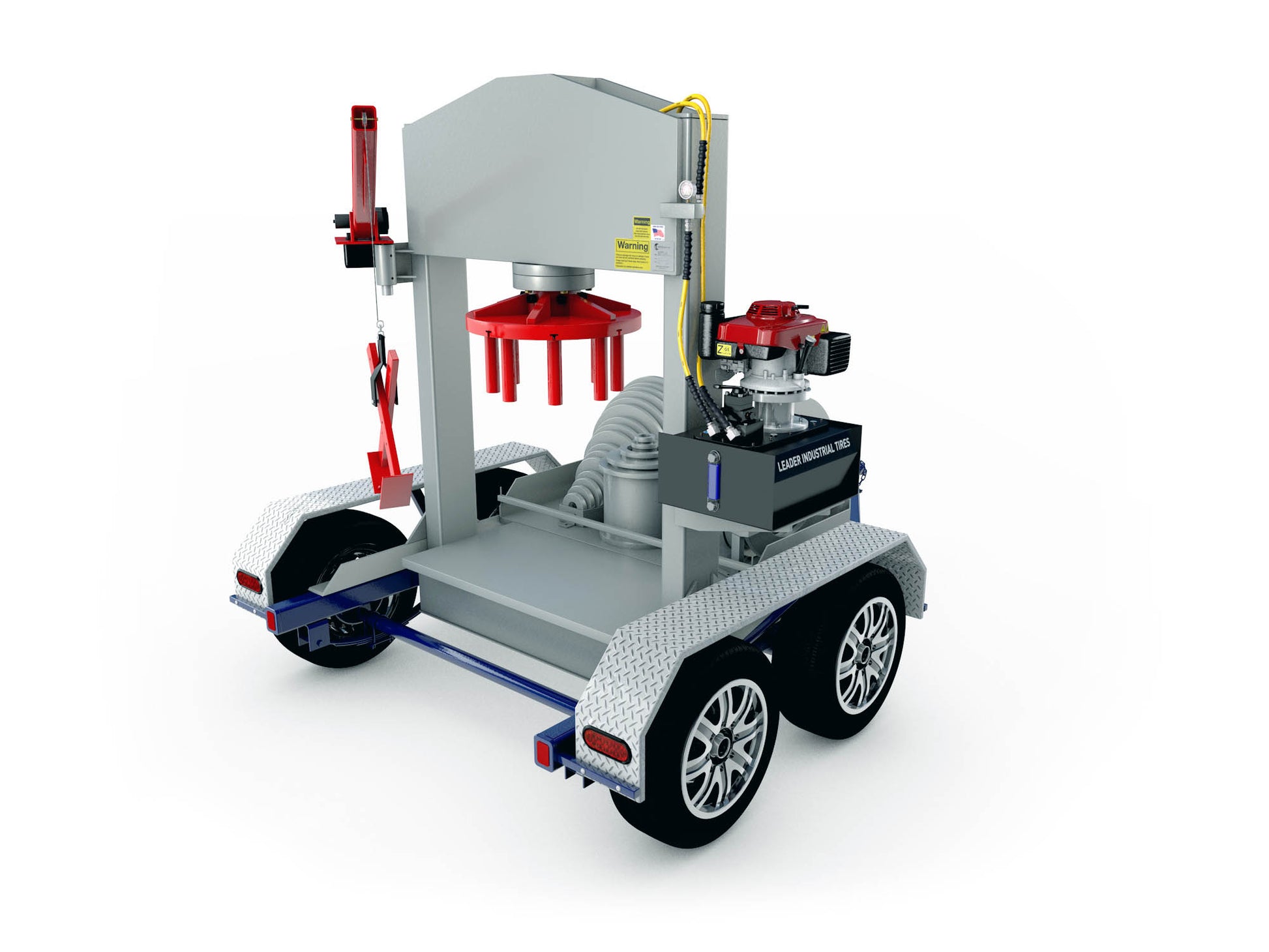

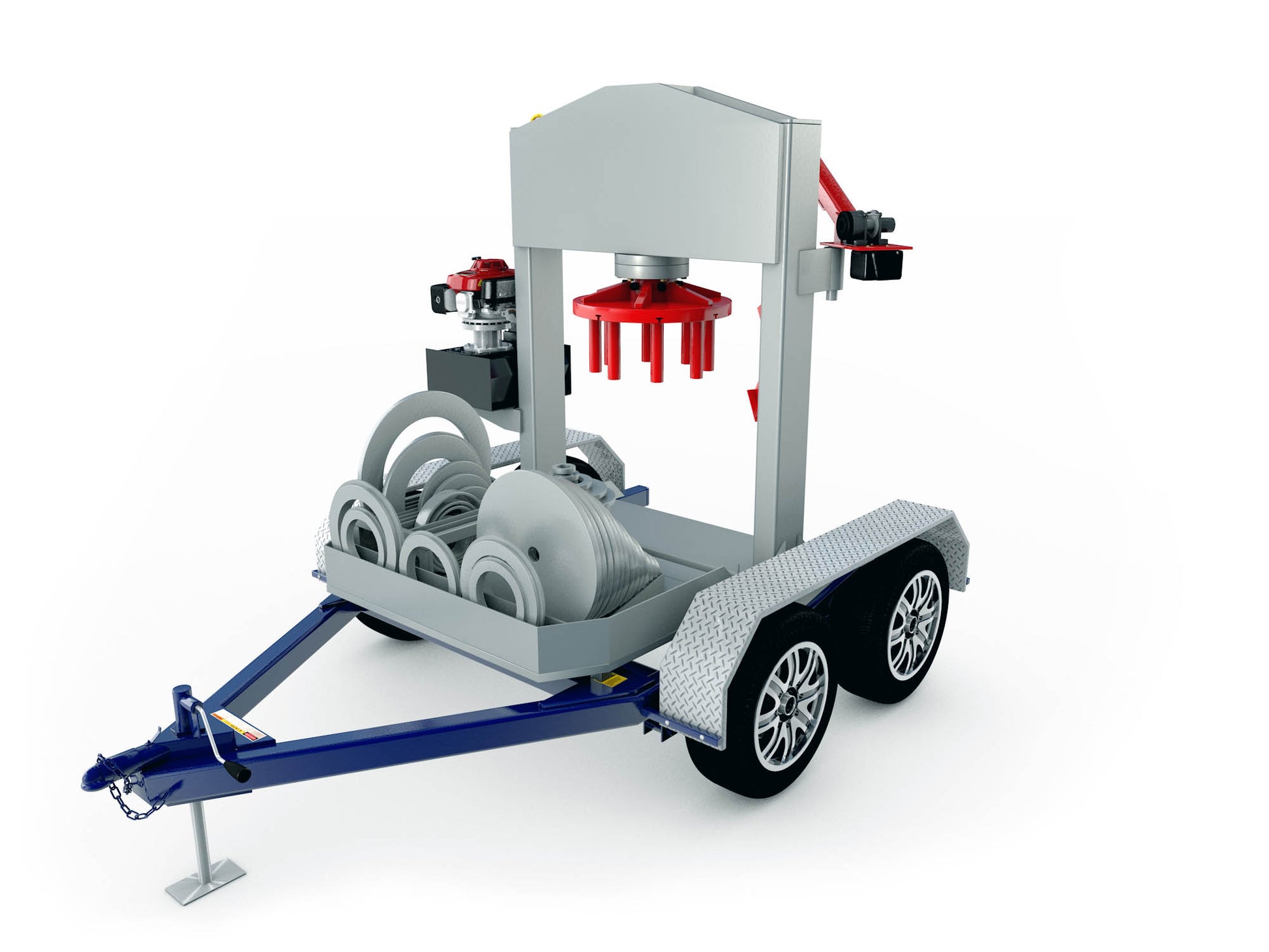

MODEL 46150M+ — MOBILE PRESS
PUMP 5.5 horsepower Honda gas pump 5-gallon hydraulic tank
CYLINDER 150 ton 18" stroke
PLATEN 2" × 25" Standard platen
SPECIFICATIONS Maximum tire: 12.00 × 20 Unit dimensions: 120" × 84" × 88" Operating space: 36" × 46" Towing weight: 5,900 lbs Axles: Two 3,500 lb axles
TOOLS INCLUDED — 46150M+ PACKAGE Unicage Assembly (inside collar, platen head, Unicage rings and six 8" legs) Tool tray Lifting crane
OPTIONS / ADD‑ONS 7.5 hp electric pump Hydraulic tank upgrade
