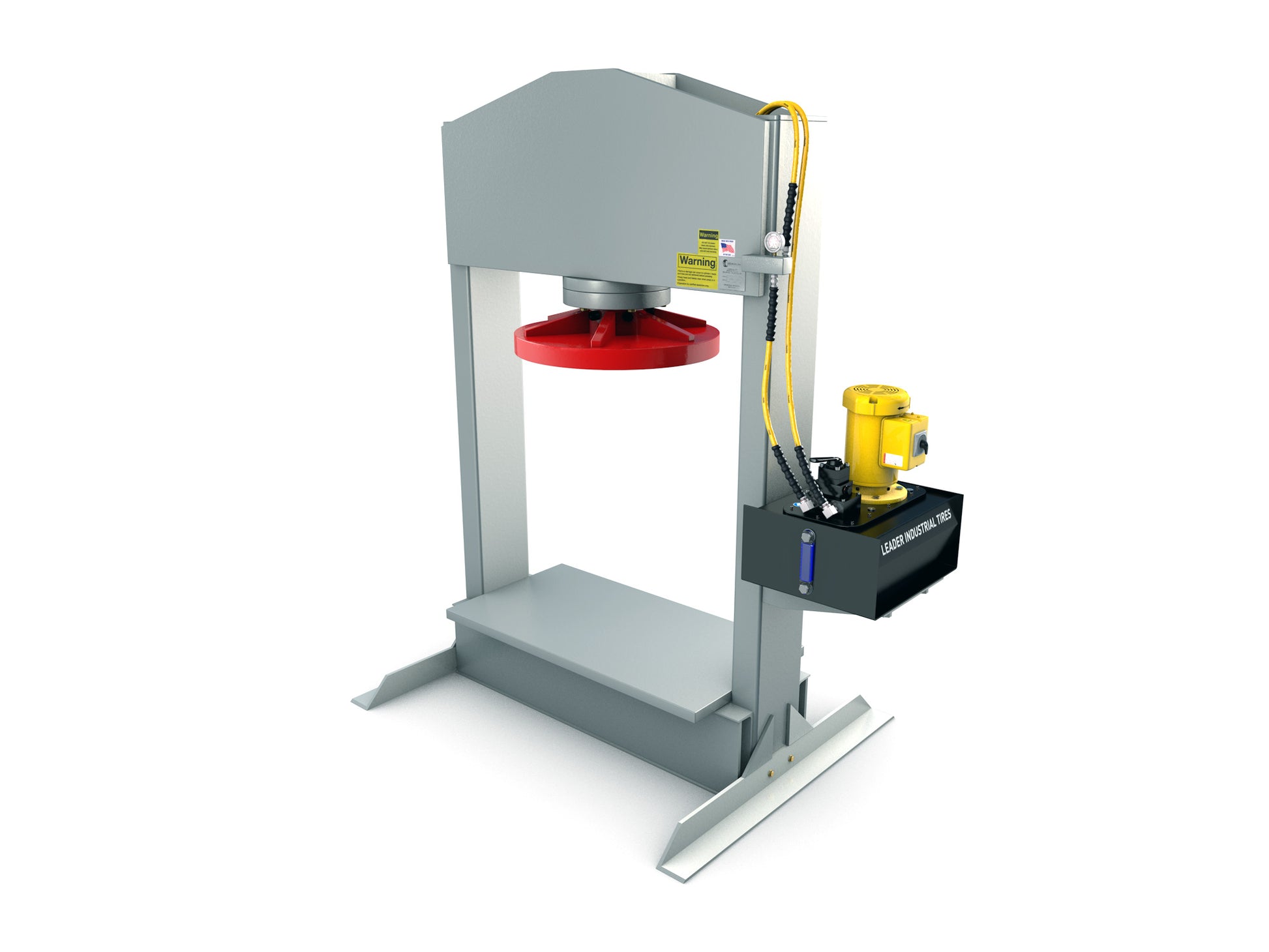

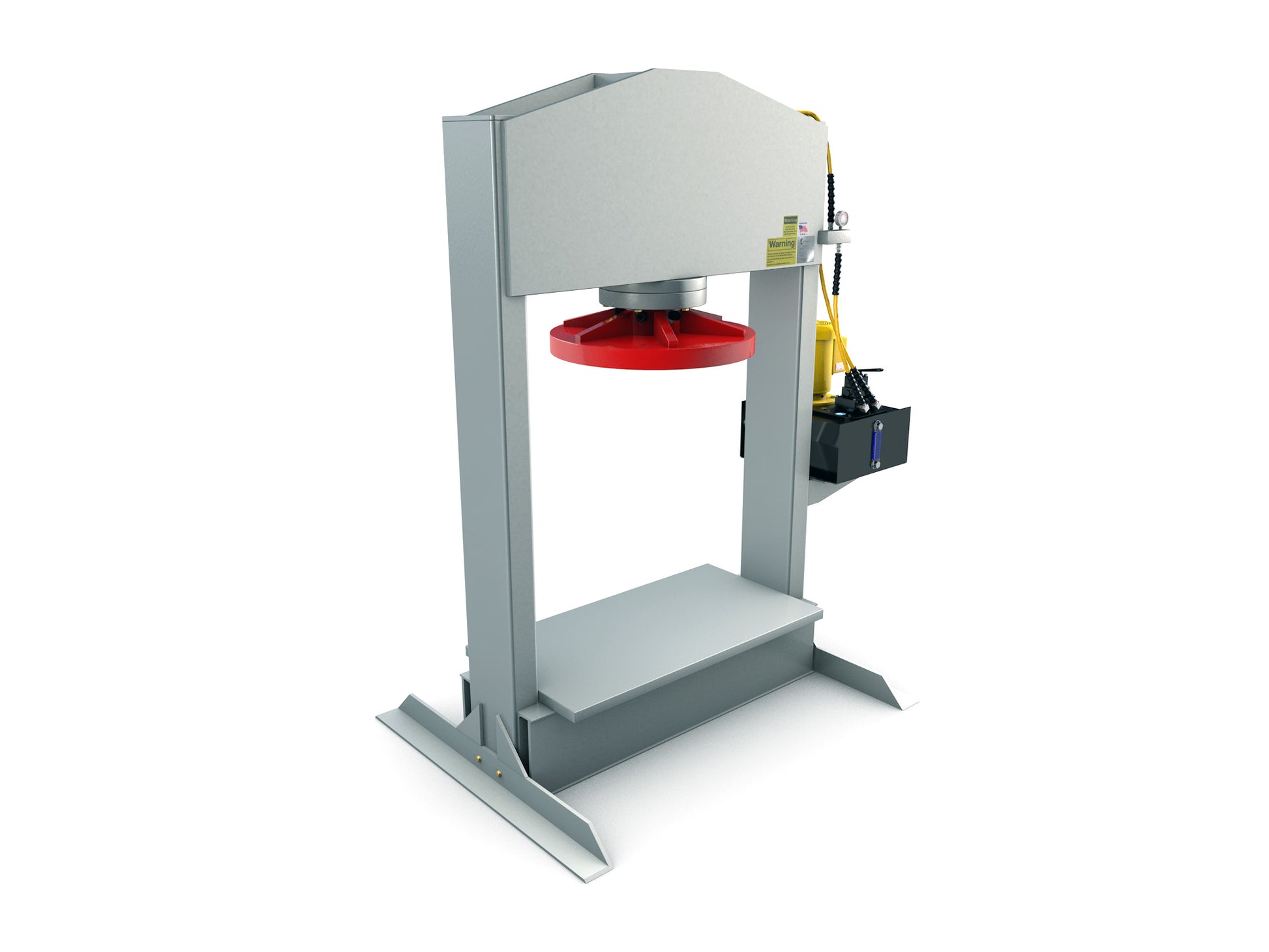

46200S Stationary Press

The 46200 Stationary Press represents the ideal middle ground for demanding industrial applications. Featuring a robust 200-ton cylinder with 18 inches of stroke, this unit delivers efficient pressing cycles within a practical 36-inch operating space. Its proven design makes it our most popular model for good reason—versatility meets performance. Unlike the 46150, the 46200 accepts cylinder upgrades up to 24 inches for extended stroke capability when your jobs demand it. Pair it with a 7 horsepower electric pump to minimize pressing times on high-volume work, or add a unicage assembly to dramatically reduce setup time on large projects. Whether you're maintaining an in-house fleet or tackling substantial pressing jobs, this press provides the power and flexibility your operation needs.

MODEL 46200S — SPECS

PUMP
1.5 horsepower
110 / 220 volt

CYLINDER
200 ton
18" stroke

PLATEN
2.5" × 26"
Standard platen

SPECIFICATIONS
Maximum Tire: 12.00 × 20
Unit Dimensions: 75" × 48" × 86"
Operating Space: 36" × 46"
Footprint: 24"
Shipping Weight: 3450 lbs

TOOLS INCLUDED
None included by default

OPTIONS / ADD-ONS
7 hp electric pump
10-gallon hydraulic tank
3-phase 230 / 480 volt option
200-ton 24" stroke cylinder upgrade
Safety cage (mounted or removable)

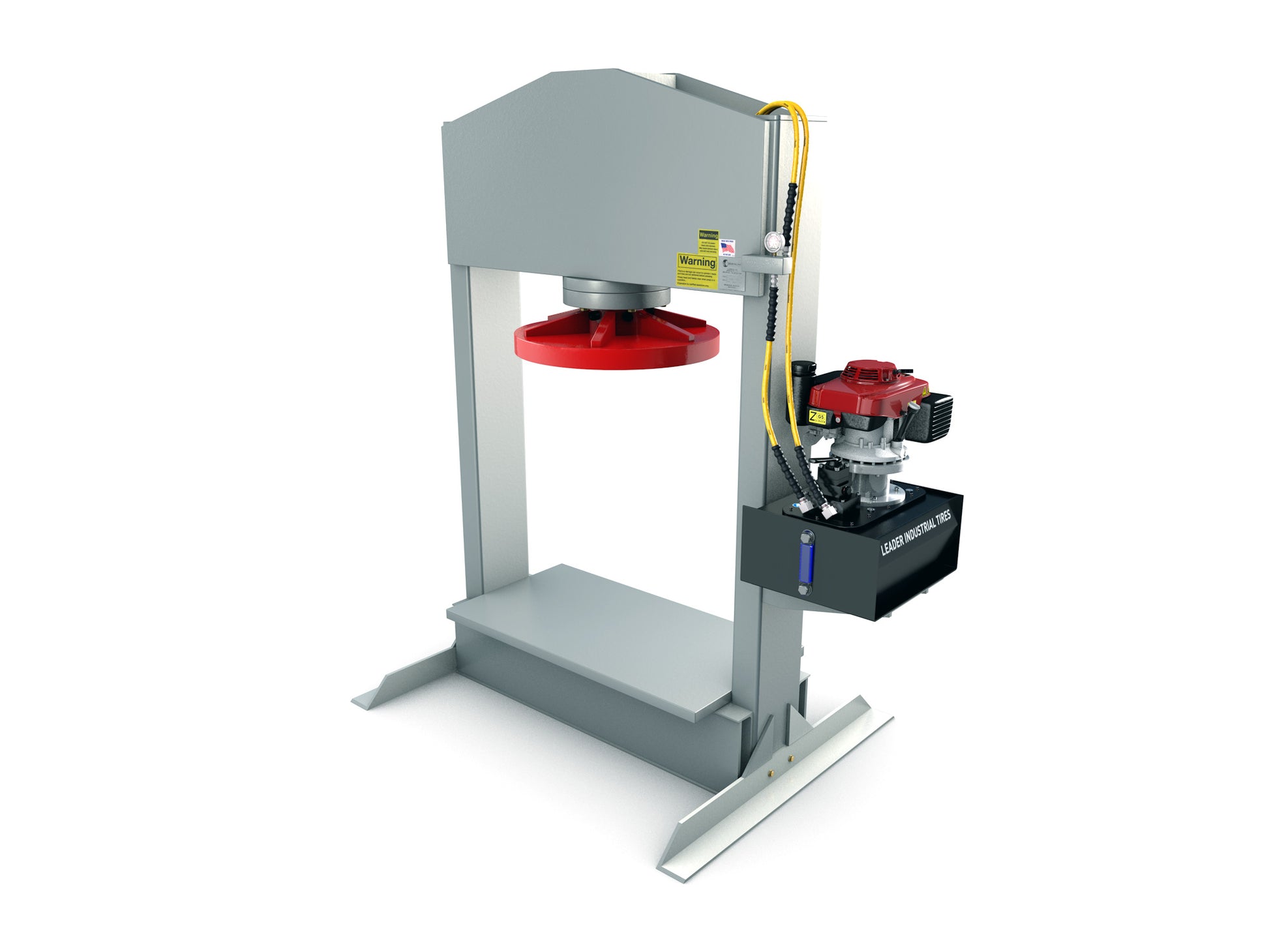

5.5 hp Honda gas pump
5-gallon hydraulic tank
UniCage Assembly (Inside Collar, Platen Head, UniCage Rings, Six 8" Legs)
