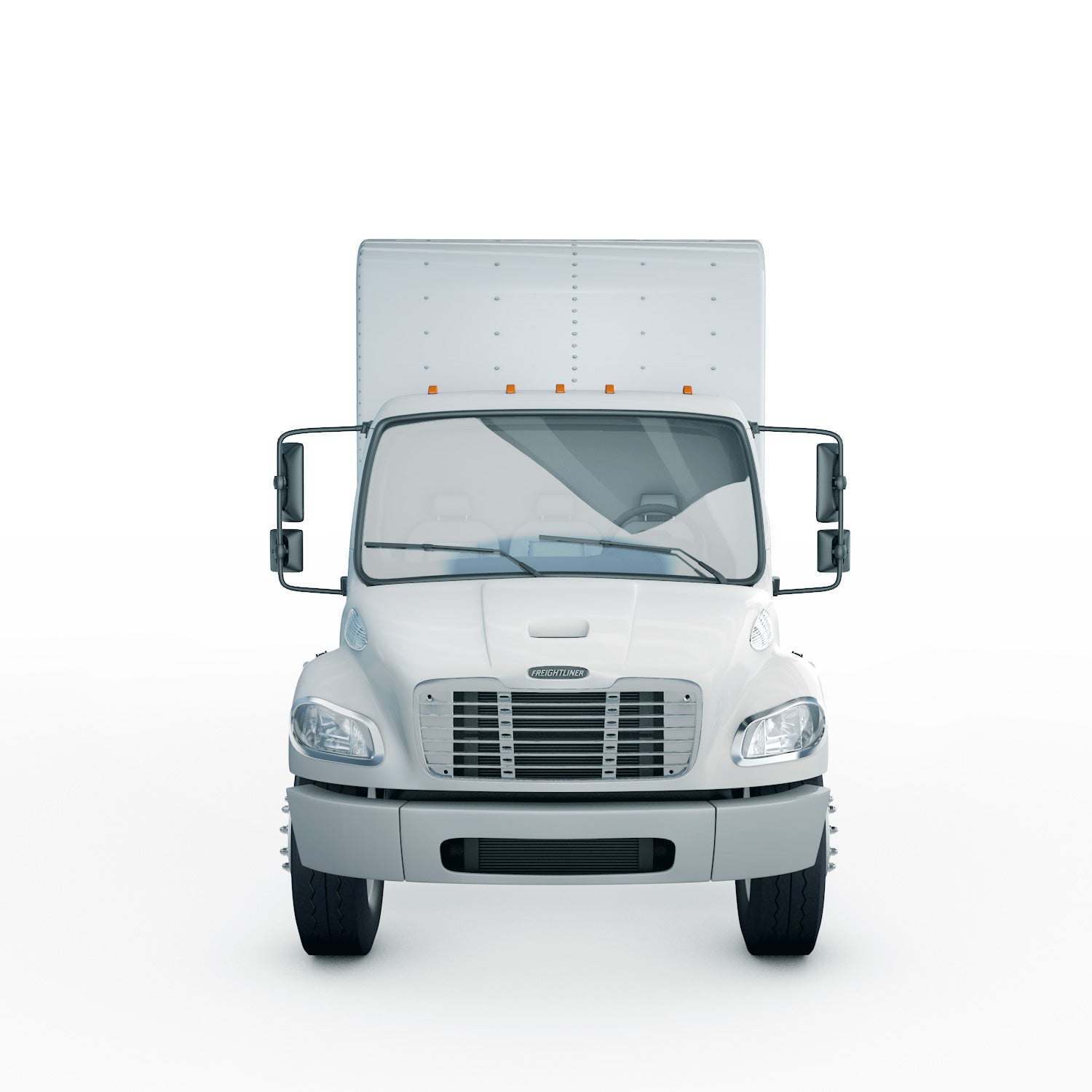

The 46200 Truck represents the pinnacle of mobile pressing technology, engineered to elevate your service operations. Built on a Freightliner M2 Business Class chassis powered by a robust 240hp Cummins Diesel engine paired with an Allison Transmission, this unit delivers the reliability and performance your business demands. Choose between a 20 or 24-foot box configuration, fully outfitted with comprehensive tooling to handle diverse job requirements. The integrated 46200 PTO press system comes standard with a unicage assembly, ensuring consistent, professional results on every application. This is the mobile pressing solution that transforms your competitive edge.
46200 Truck – Specifications
Truck Platform
Chassis: Freightliner M2 Business Class
Box Length Options: 18 ft, 20 ft, or 24 ft
Engine: 240 HP Cummins ISB Diesel
Transmission: Allison 2100RDS, 5-speed automatic
GVW: 26,000 GVW (2600/3300 GVW variants referenced)
Fuel Tank: 50 gallon
Tires: 11R-22.5
Brakes: Air brakes
Additional Features:
Transparent roof
Side door
Lift gate
Press System
Press Model: 46200 PTO Press
Cylinder:
200 Ton
18" Stroke
Platen Head:
UniCage Assembly
2.5" × 26"
Maximum Tire Size:
12.00 × 20 with safety cage
16" with UniCage
Operating Space: 36" × 46"
Press Configuration: PTO-driven (truck powered)
Included Equipment
PTO Pump Kit
UniCage Assembly (rings & legs)
Lifting Table:
1.5 HP
110 / 220 Volt
Air Supply:
30-gallon air tank
Compressor:
30-gallon tank
13 HP Honda gas
Tool Kit:
UniCage tool pack
Hose Reel:
50-foot, rear-mounted
Tool Box:
5 ball-bearing drawers, locking
Press Plate Rack:
Holds 13 plates
Work Station:
Holds start rings and press stands
Ring Rack:
UniCage rings & base rings
Tire Rack:
Tire storage
Storage:
14" × 52" lock box
Electrical:
110-volt inverter (4 plugs)
Work station light
Work station fan
