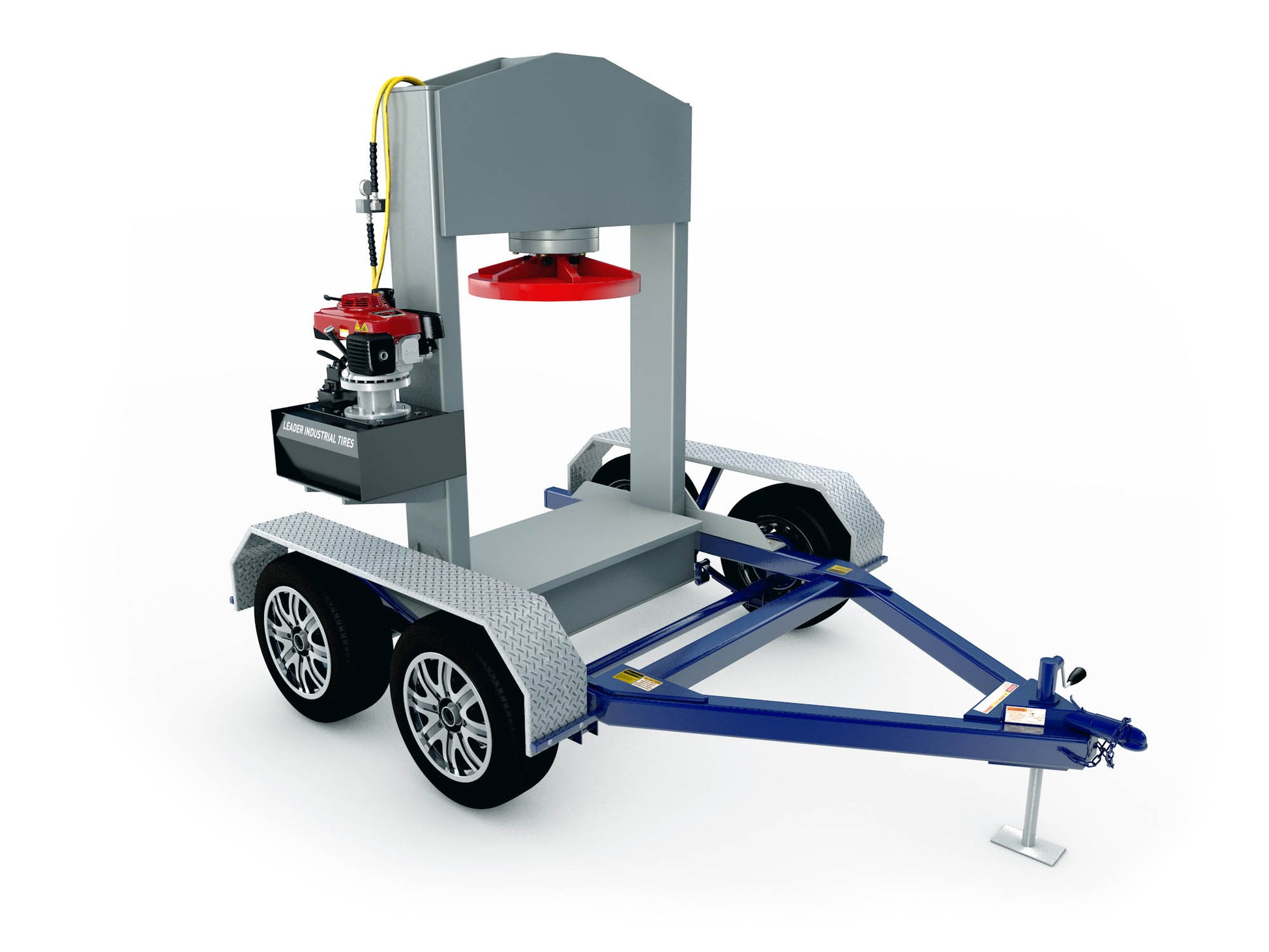

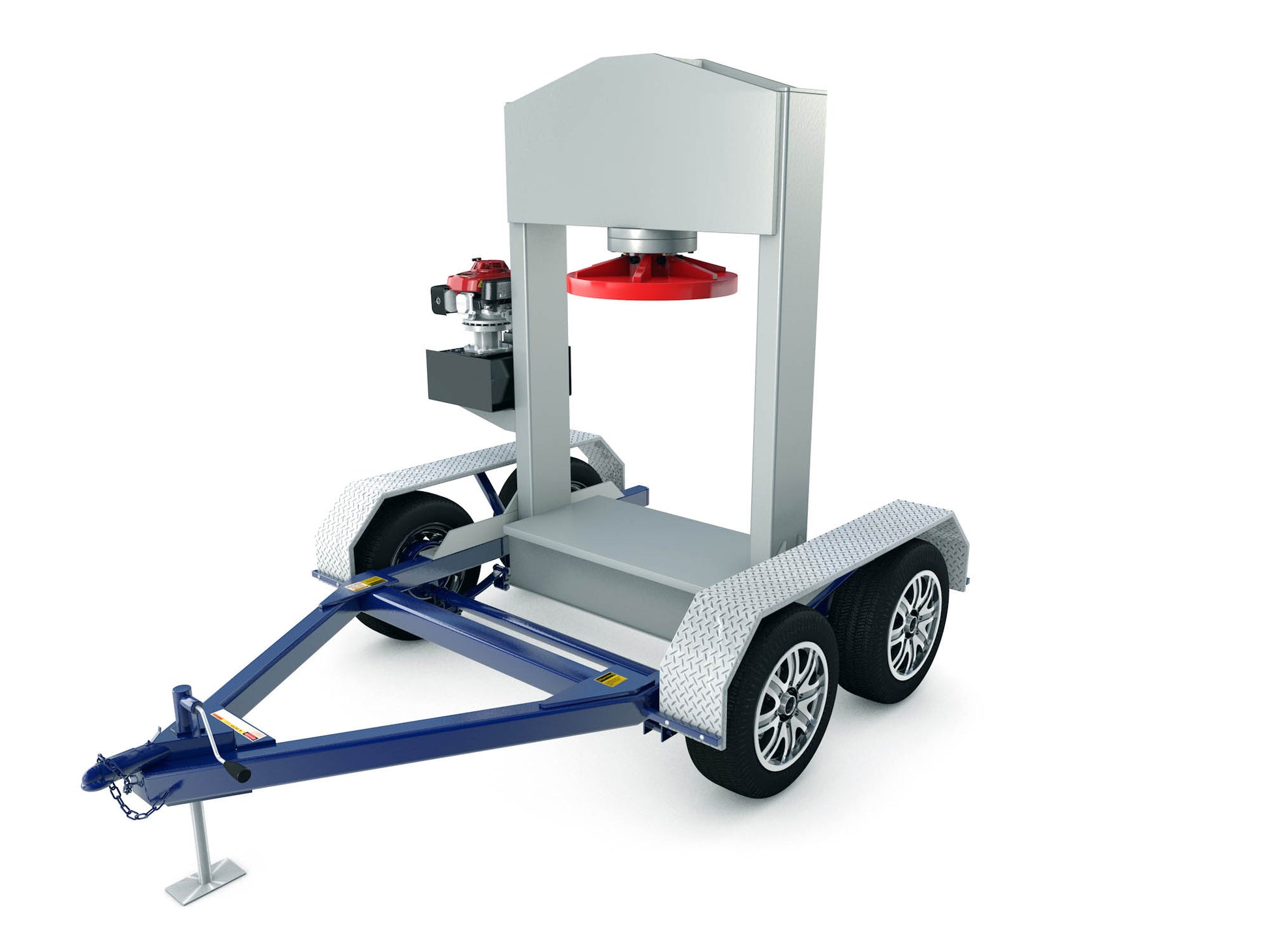

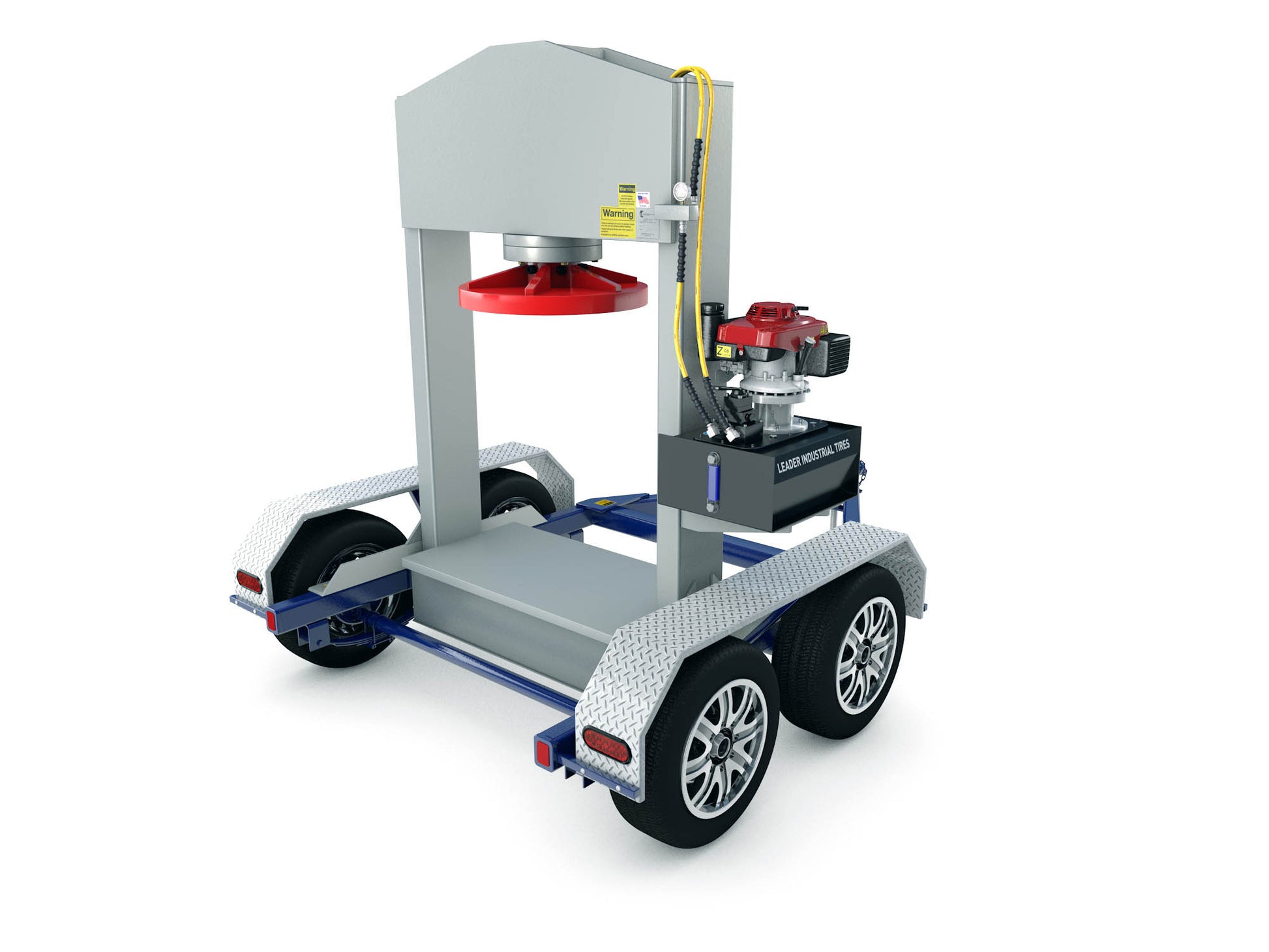

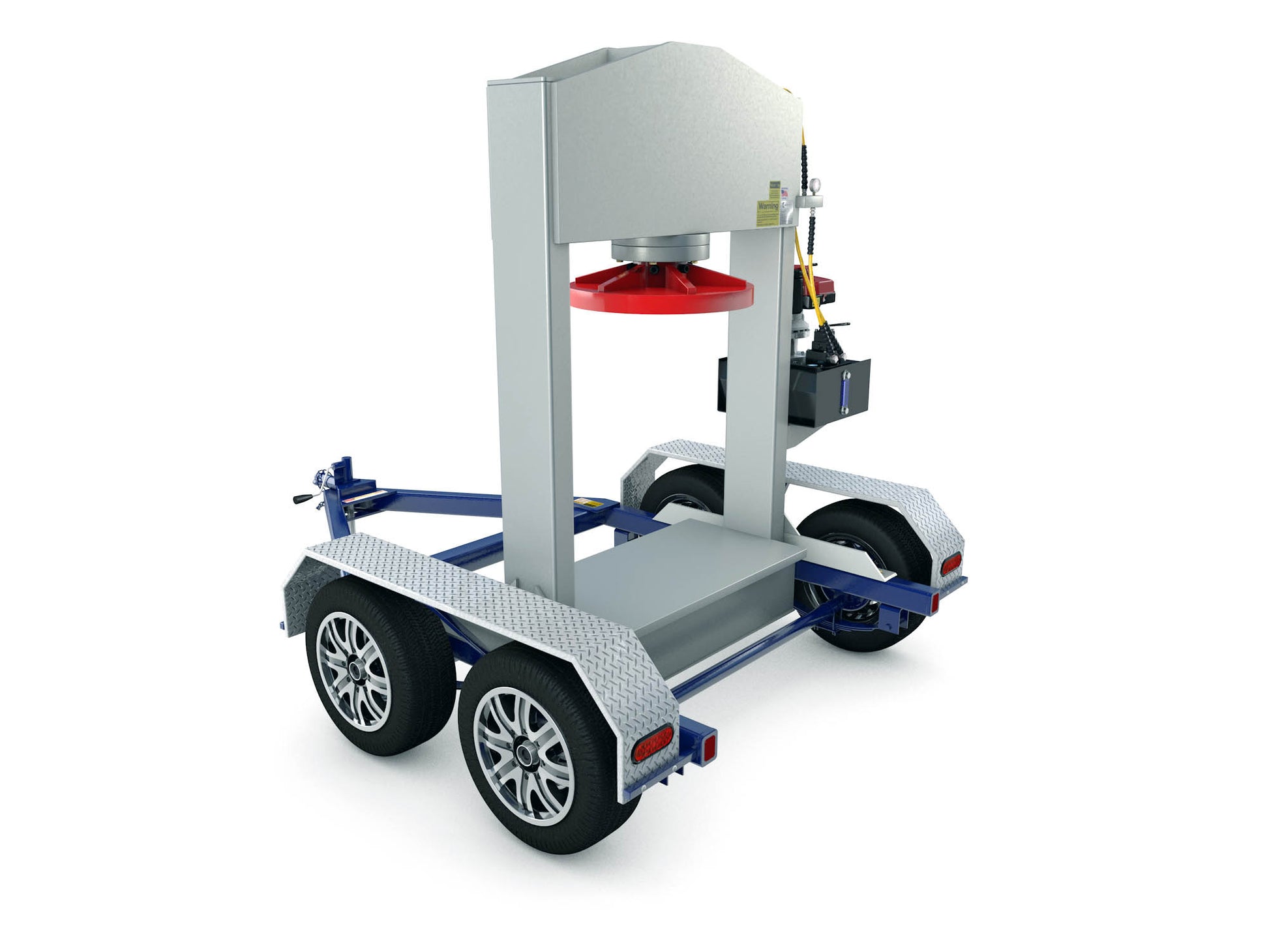

46200M Mobile Press

The 46200M mobile press brings the power of our largest stationary units into a portable package. Built on a heavy-duty trailer and powered by a reliable 5.5 horsepower Honda gas pump, it delivers 200 tons of pressing force wherever you need it.

MODEL 46200M — SPECS

PUMP
5.5 horsepower Honda gas pump

CYLINDER
200 ton
18" stroke

PLATEN
2.5" × 26"

SPECIFICATIONS
Maximum tire: 12.00 × 20
Unit dimensions: 120" × 84" × 92"
Operating space: 36" × 46"
Towing weight: 4,400 lbs (two 3,500 lb axles)

TOOLS INCLUDED
None included by default

OPTIONS / ADD‑ONS
• Unicage Assembly (Inside Collar, Platen Head, Unicage Rings, Six 8" Legs)
• Tool tray and lifting crane
• 7 hp electric pump
• 10‑gallon hydraulic tank
• 3‑phase 230 / 480 volt electric upgrade
• 200 ton 24" stroke cylinder upgrade
• Safety cage (mounted or removable)
• 5.5 hp Honda gas pump with 5‑gallon hydraulic tank
