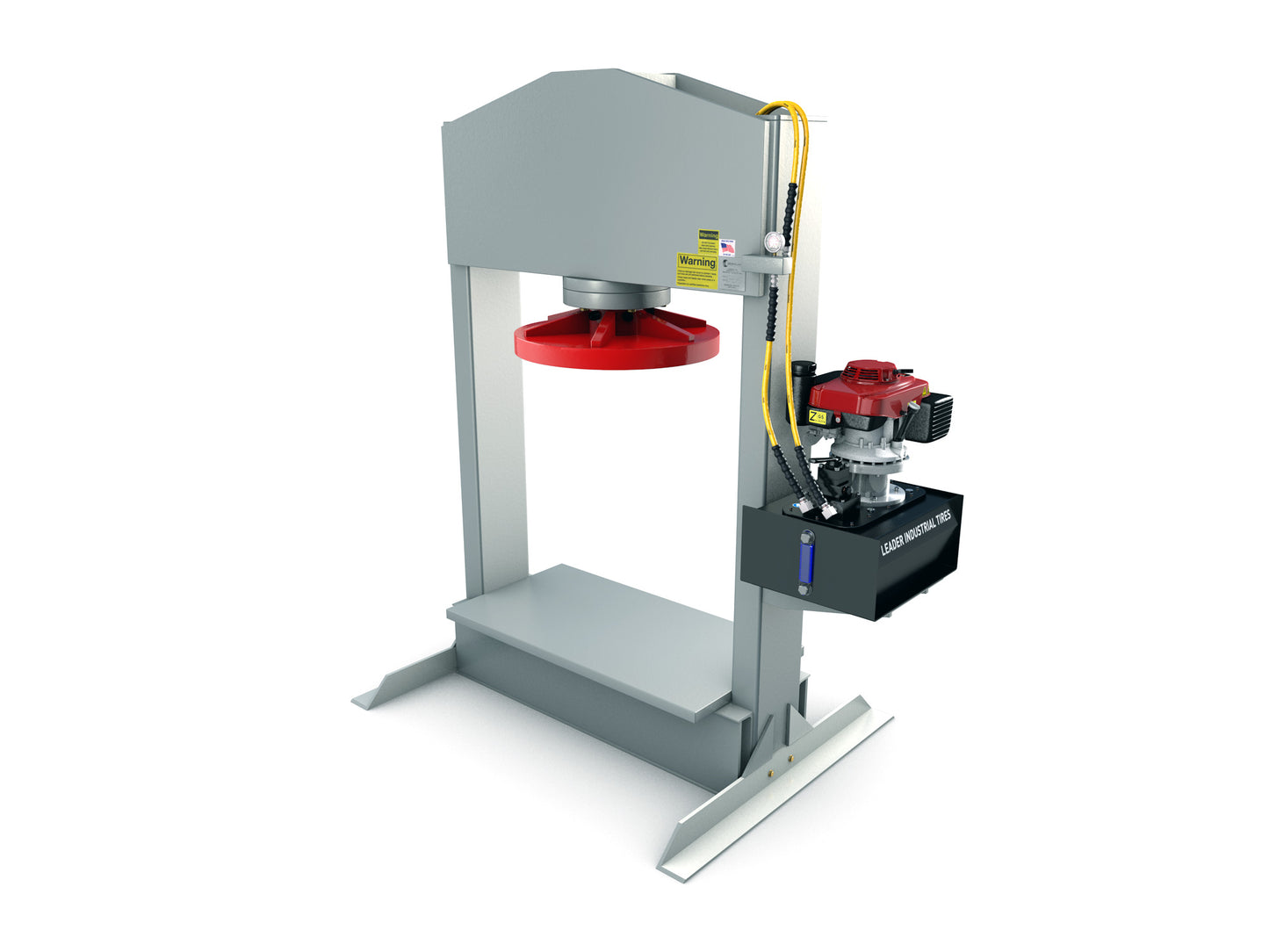

46250S Stationary Press

The 46250S Stationary Press delivers exceptional performance for heavy-duty industrial pressing operations. Built with a powerful 250-ton cylinder and 18-inch stroke, this unit provides the extra force needed for demanding applications while maintaining a compact 36-inch footprint. Its robust construction has earned it a reputation as our most versatile workhorse. The 46250S accommodates cylinder upgrades up to 24 inches for extended stroke capability when projects require greater reach. Maximize efficiency by pairing it with a 7 horsepower electric pump to accelerate pressing cycles on high-volume jobs, or integrate a unicage assembly to slash setup times on large-scale operations. Ideal for fleet maintenance and substantial production runs alike.

MODEL 46250S — SPECS

PUMP
1.5 horsepower
110 / 220 volt

CYLINDER
250 ton
18" stroke

PLATEN
2.5" × 26"
Standard platen

SPECIFICATIONS
Maximum Tire: 12.00 × 20
Unit Dimensions: 75" × 48" × 86"
Operating Space: 36" × 46"
Footprint: 24"
Shipping Weight: 3450 lbs

TOOLS INCLUDED
None included by default

OPTIONS / ADD-ONS
7 hp electric pump
10-gallon hydraulic tank
3-phase 230 / 480 volt option
200-ton 24" stroke cylinder upgrade
Safety cage (mounted or removable)
5.5 hp Honda gas pump
5-gallon hydraulic tank
UniCage Assembly (Inside Collar, Platen Head, UniCage Rings, Six 8" Legs)
