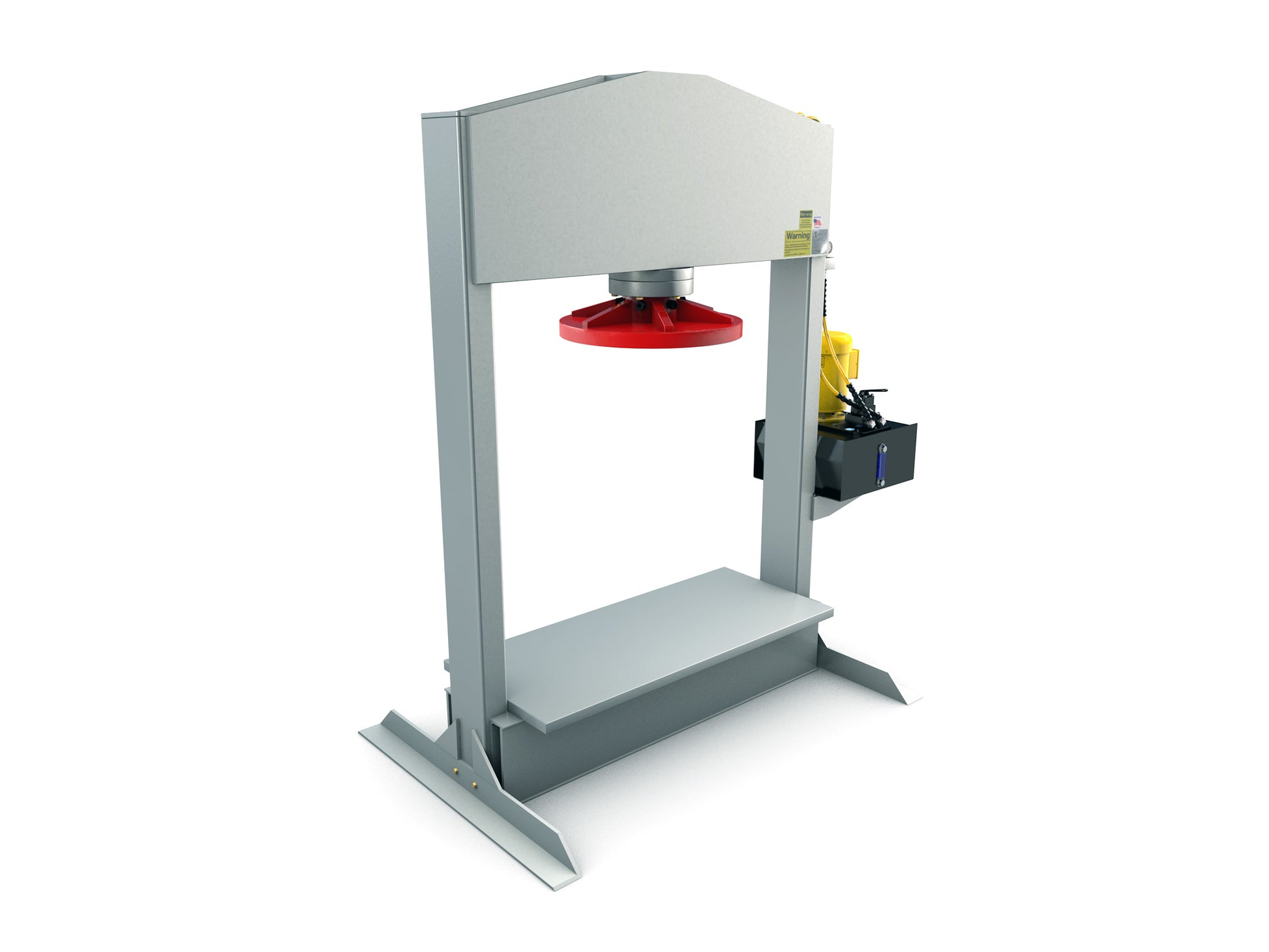

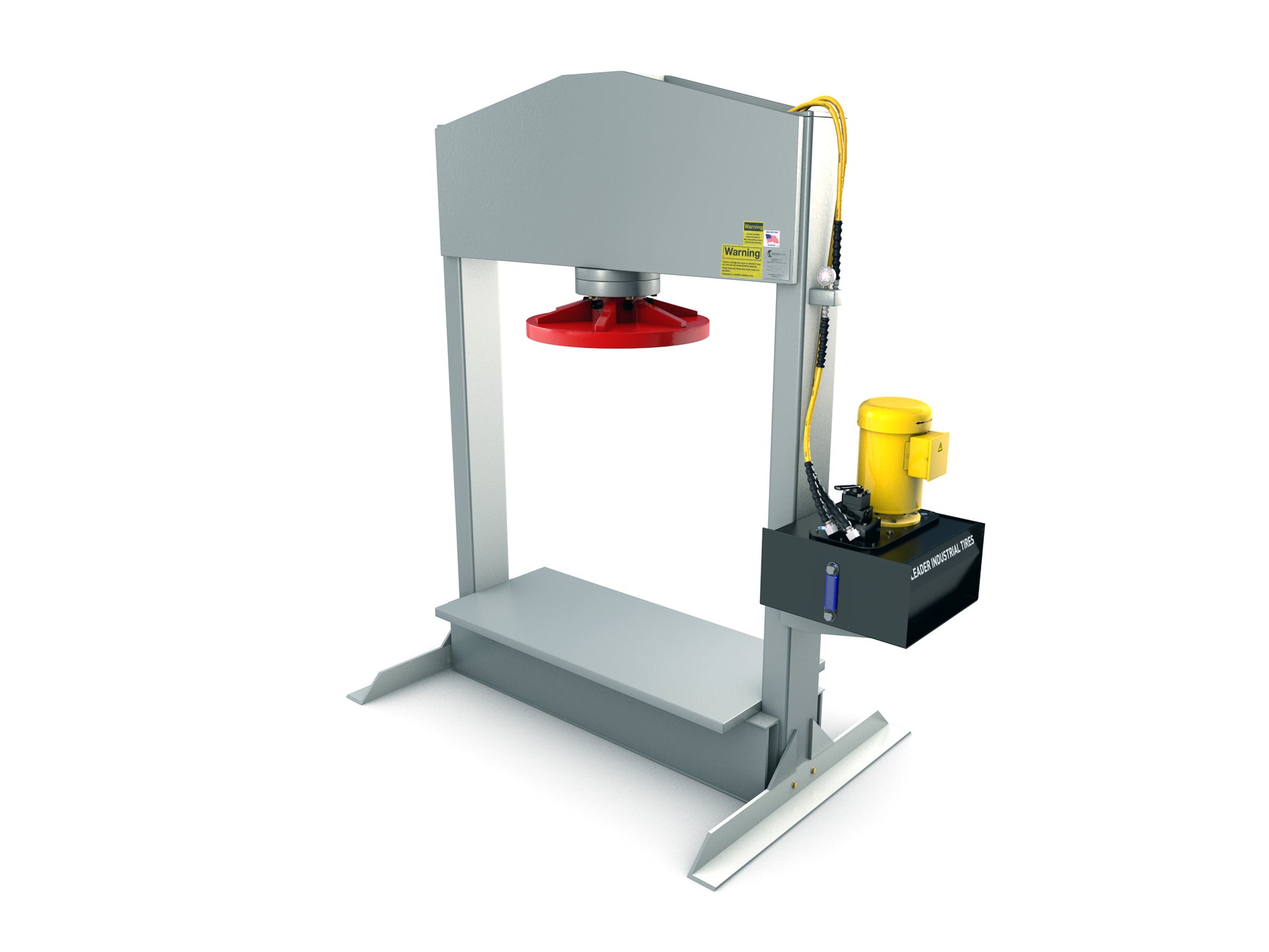

56150S Stationary Press

The 56150 Stationary Press delivers professional-grade tire pressing capability with 10 additional inches of operating space compared to the 46150 model. Purpose-built for pressing 14.00 x 24 solid pneumatic tires, this machine is ideal for fleet operators managing specialized tire maintenance in-house. Its robust stationary design ensures consistent performance and reliability for dedicated, high-volume applications. Perfect for businesses requiring precision pressing with the extra clearance needed for larger tire formats.

MODEL 56150S — SPECS

PUMP
1.5 horsepower
110 / 220 volt

CYLINDER
150 ton
18" stroke

PLATEN
2.5" × 26"
Standard platen

SPECIFICATIONS
Maximum Tire: 14.00 × 24
Unit Dimensions: 85" × 48" × 102"
Operating Space: 42" × 56"
Footprint: 24"
Shipping Weight: 3375 lbs

TOOLS INCLUDED
None included by default

OPTIONS / ADD-ONS
7 hp electric pump
10-gallon hydraulic tank
3-phase 230 / 480 volt option
Safety cage (mounted or removable)
5.5 hp Honda gas pump
5-gallon hydraulic tank
UniCage Assembly (Inside Collar, Platen Head, UniCage Rings, Six 8" Legs)
