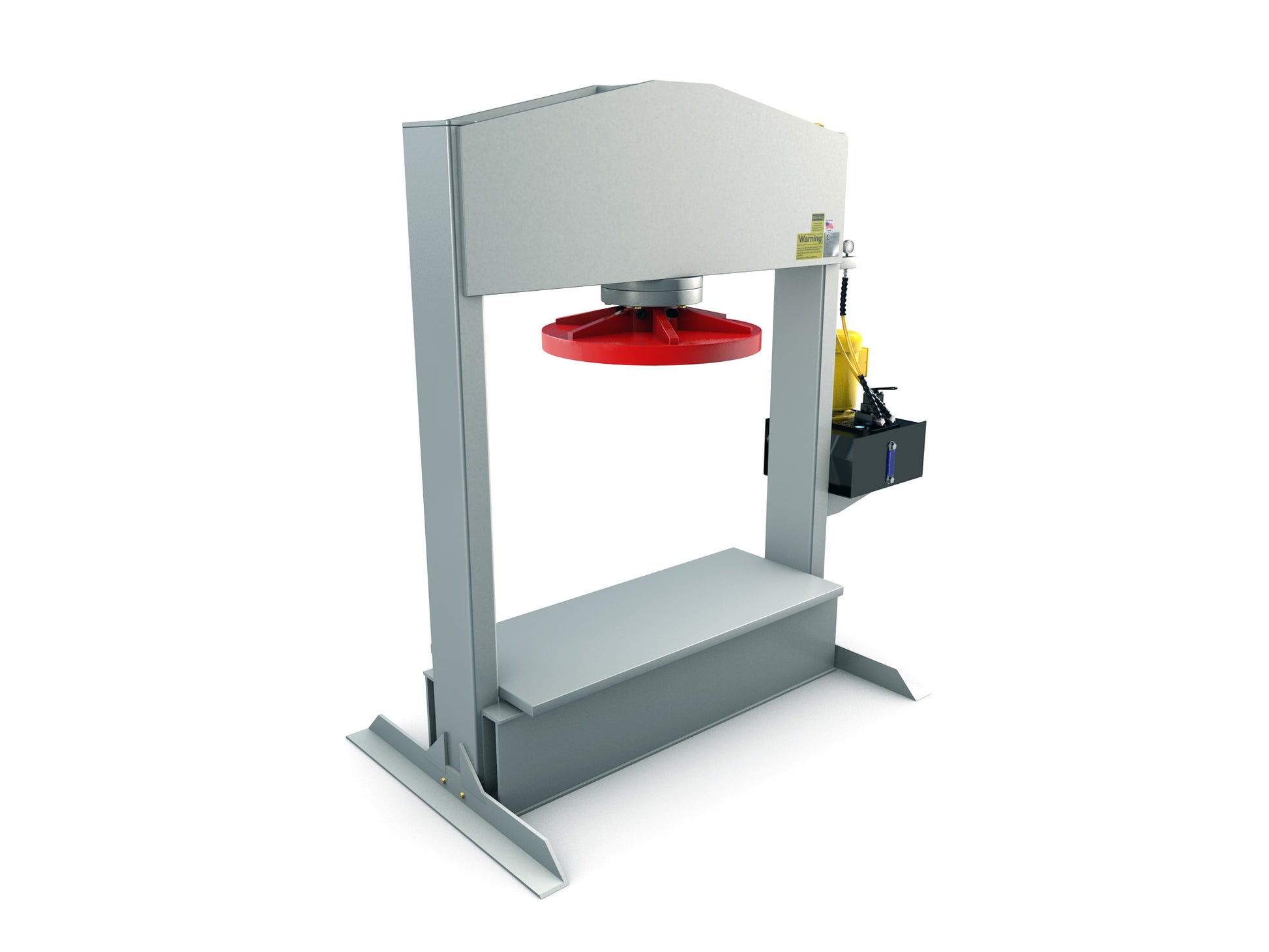

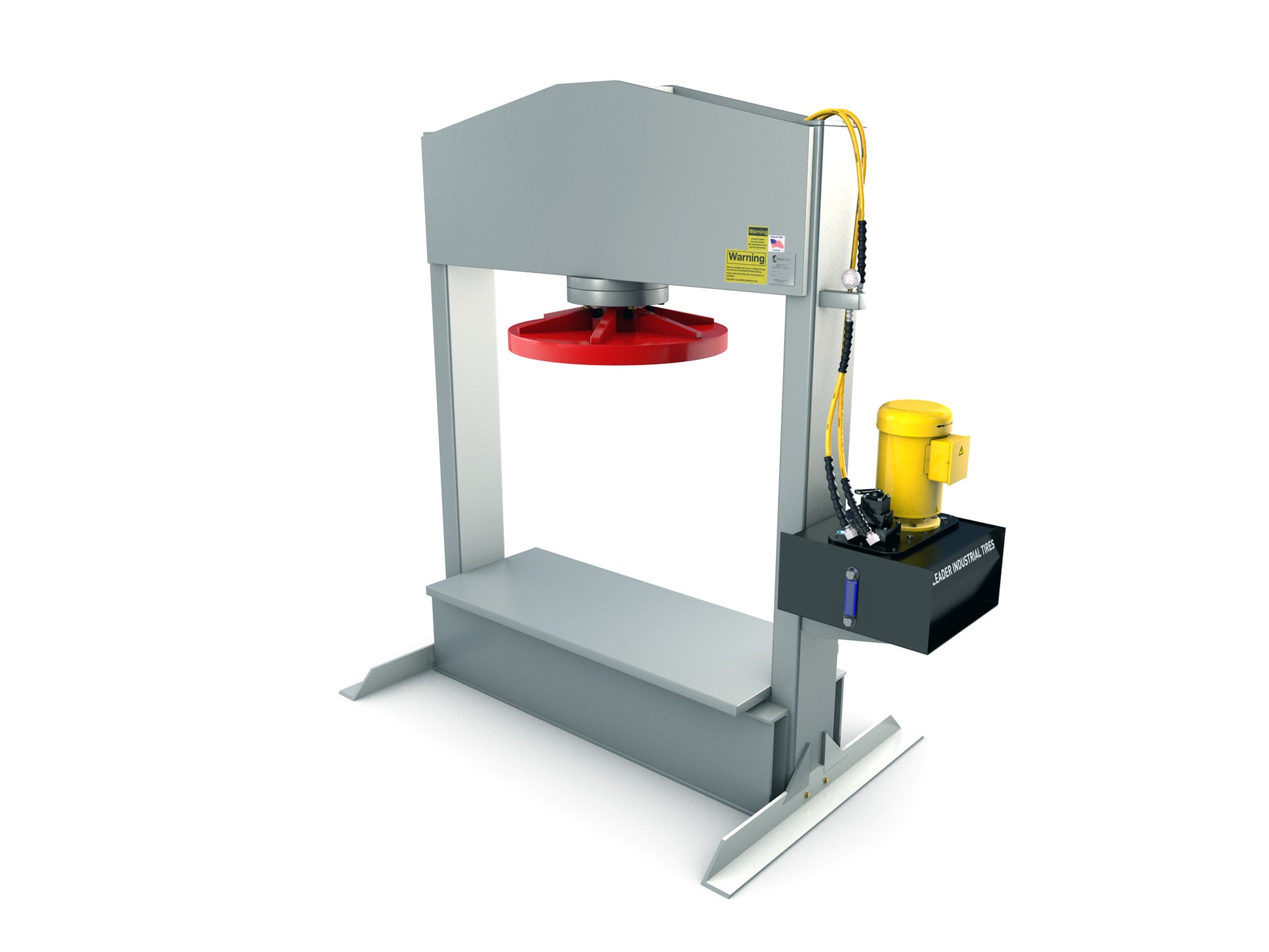

60200S Stationary Press

The 60200 Stationary Press is engineered for operations that handle diverse tire applications across multiple sizes and specifications. This versatile machine accommodates a wide range of press-on tires, making it the go-to solution for shops managing varied inventory and customer demands. Built with industrial-grade construction, it delivers consistent pressing performance whether you're working with standard or specialty tire formats. Ideal for tire service centers and fleet maintenance facilities requiring flexibility without compromising precision or durability.

MODEL 60200S — SPECS

PUMP
1.5 horsepower
110 / 220 volt

CYLINDER
200 ton
18" stroke

PLATEN
2.5" × 26"
Standard platen

SPECIFICATIONS
Maximum Tire: 14.00 × 24
Unit Dimensions: 89" × 48" × 126"
Operating Space: 44" × 60"
Footprint: 24"
Shipping Weight: 4500 lbs

TOOLS INCLUDED
None included by default

OPTIONS / ADD-ONS
7 hp electric pump
10-gallon hydraulic tank
3-phase 230 / 480 volt option
200-ton 24" stroke cylinder upgrade
Safety cage (mounted or removable)
10 hp electric pump
10-gallon hydraulic tank (3-phase or single-phase option)
UniCage Assembly (Inside Collar, Platen Head, UniCage Rings, Six 8" Legs)
