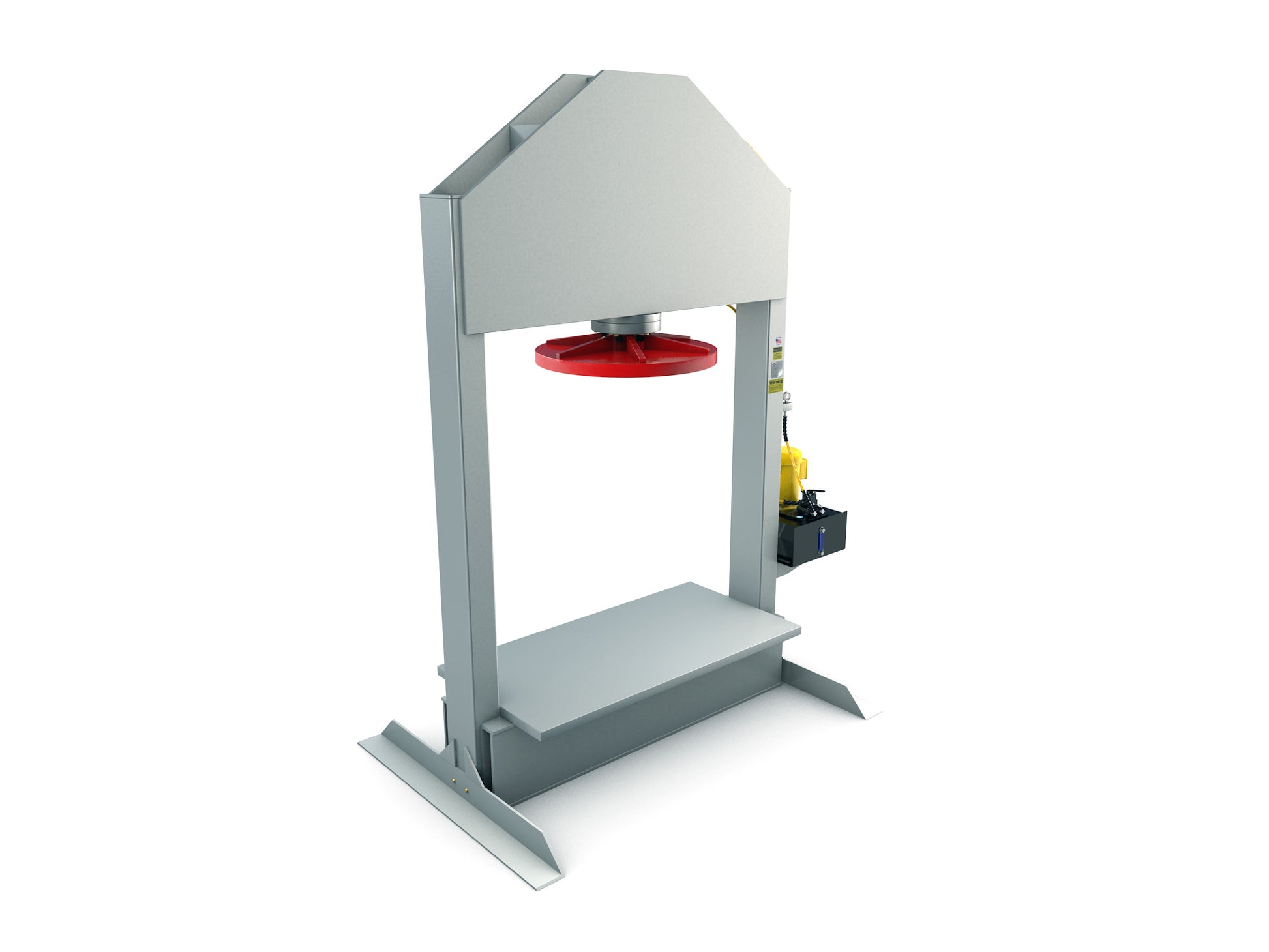

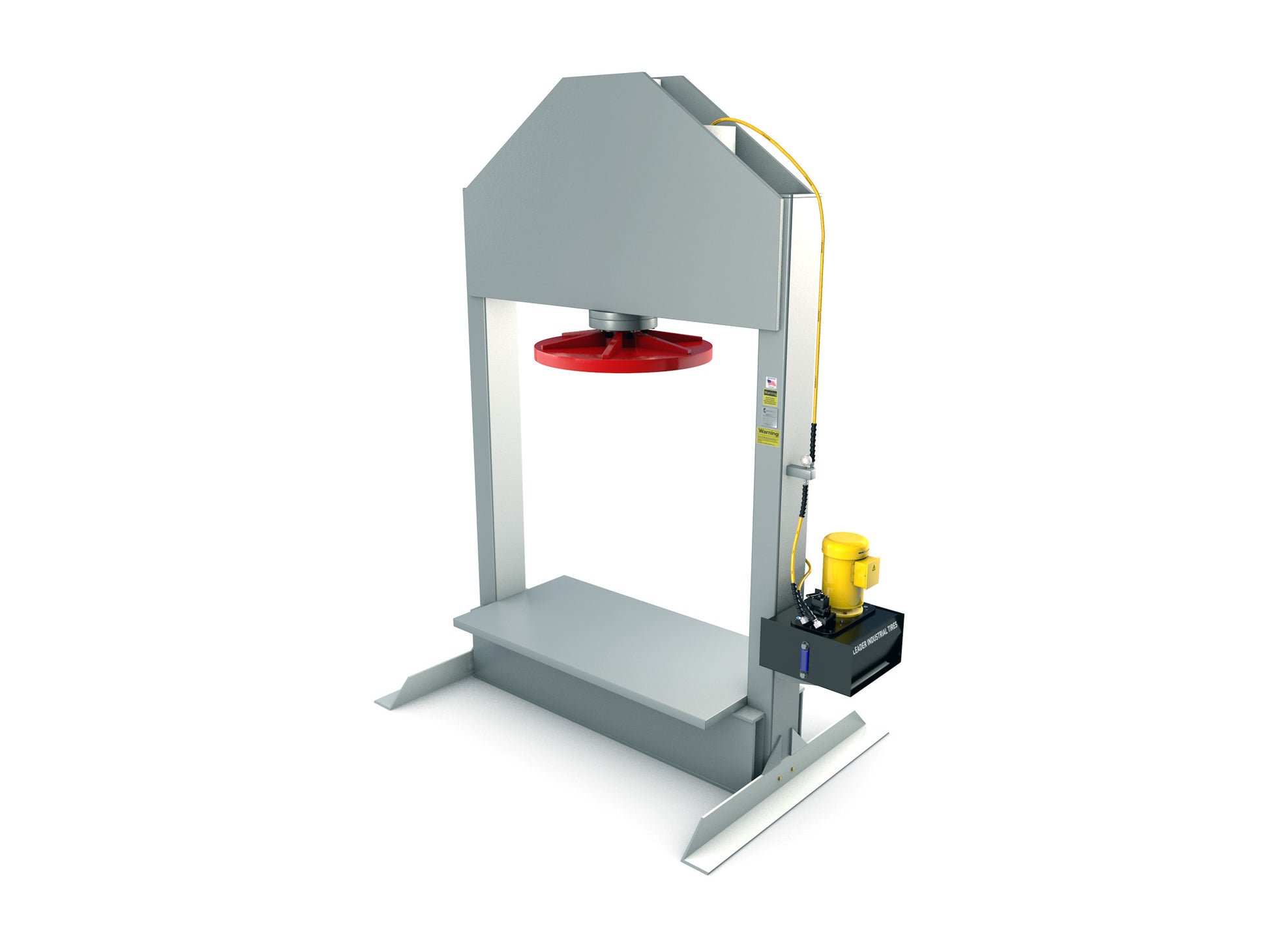

72200S Stationary Press

The 72200S Stationary Press delivers versatile tire mounting capability for operations handling diverse press-on tire applications. Built to accommodate tires up to 14.00 x 24, this machine features a robust 4500 lb capacity with a spacious 89" x 48" x 126" footprint. The 60" press height and 44" width provide optimal operator access and efficiency. Engineered for industrial tire shops requiring flexibility across multiple tire sizes and types, the 72200S combines durability with practical dimensions for demanding production environments.

MODEL 72200S — SPECS

PUMP
5 horsepower electric pump
10-gallon hydraulic tank
220 volt

CYLINDER
200 ton
24" stroke

PLATEN
2.5" × 30"
Standard platen

SPECIFICATIONS
Maximum Tire: 14.00 × 24
Unit Dimensions: 98" × 48" × 126"
Operating Space: 44" × 60"
Footprint: 24"
Shipping Weight: 6000 lbs

TOOLS INCLUDED
Standard 72200 tool pack

OPTIONS / ADD-ONS
Unicage Assembly
10 hp electric pump upgrade
Removable safety cage
3-phase 230 / 480 volt option
Additional platen sizes
Removable base
