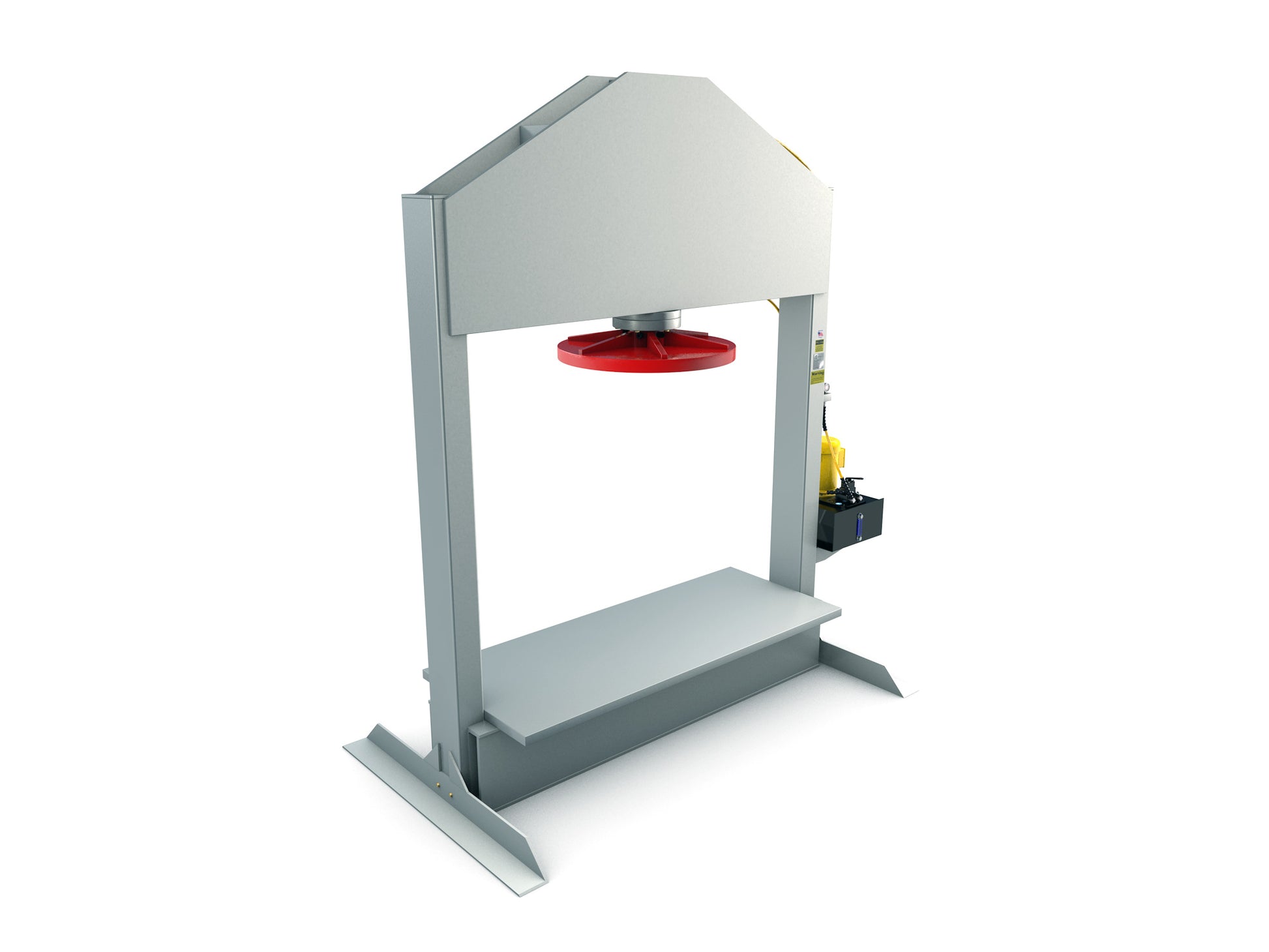

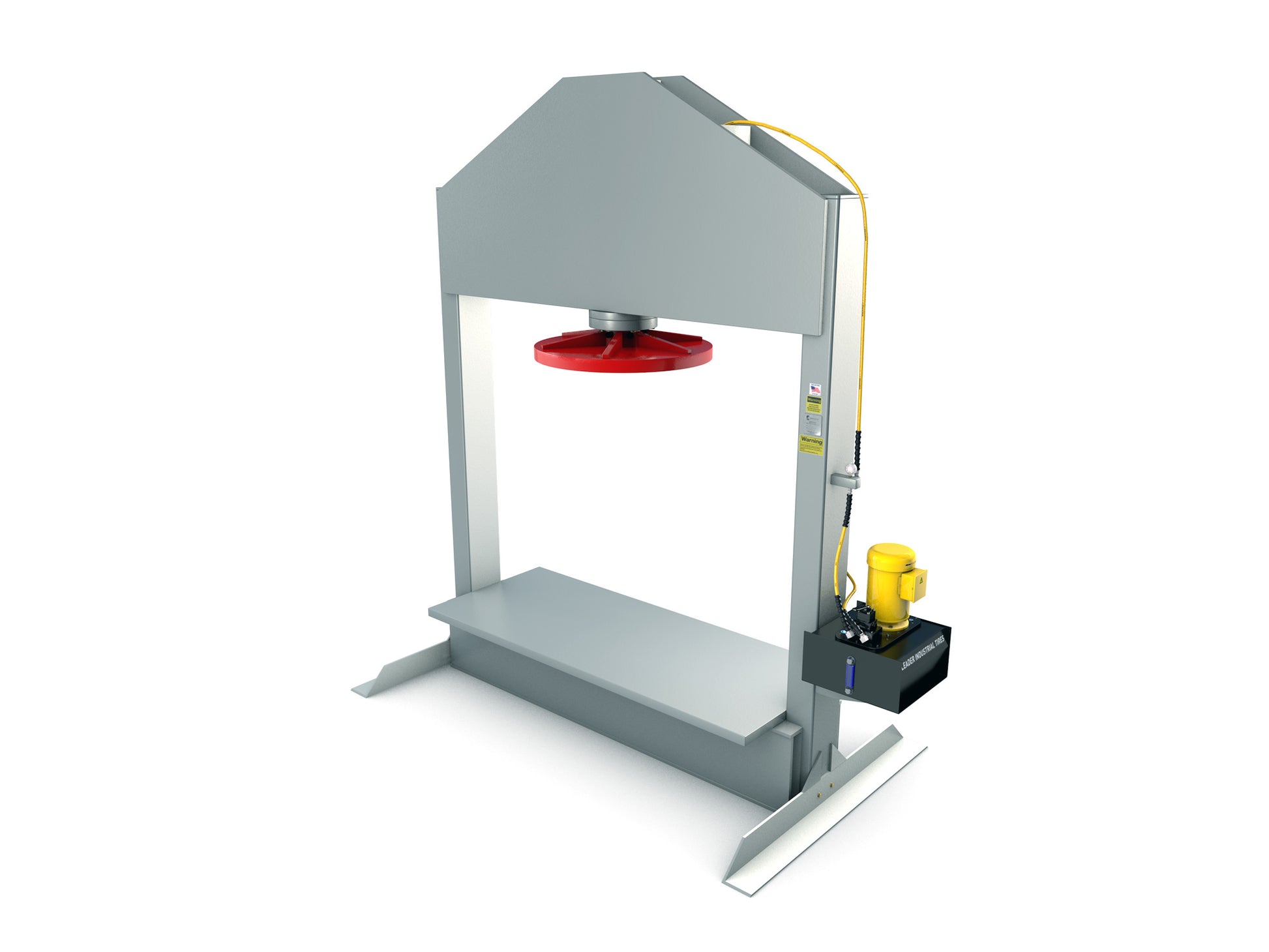

90200S Stationary Press

The 90200S stationary press is our largest unit, engineered for the heaviest and largest solid and resilient industrial tires. With a 90" opening and 36" stroke, it handles the largest off-road and mining tires on the market. The 7 horsepower electric pump delivers smooth, consistent pressure, while the 200-ton cylinder provides the power needed for extreme pressing applications.

MODEL 90200S — SPECS

PUMP
7 horsepower
220 volt electric pump

CYLINDER
200 ton
36" stroke

PLATEN
2.5" × 36"
Standard platen

SPECIFICATIONS
Maximum tire: 88" O.D.
Unit dimensions: 121" × 72" × 135"
Operating space: 60" × 90"
Footprint: 36"
Shipping weight: 8000 lbs

TOOLS INCLUDED
None included

OPTIONS / ADD-ONS
Unicage assembly (inside collar, platen head, Unicage rings, six 10" legs)
10 hp electric pump
Removable base
Safety cage (mounted or removable)
